White Industries MR30 TSR 1x Chainring

White Industries MR30 TSR 1x Chainring

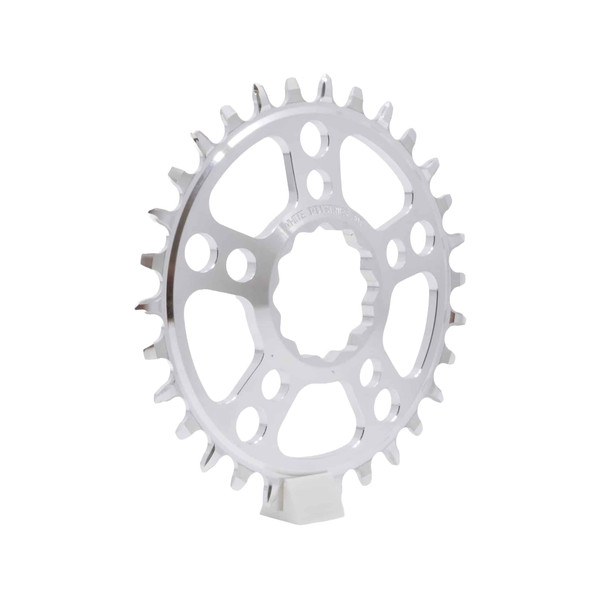

This is the White Industries MR30 TSR 1X Chainring.

The White Industries TSR 1X Chainring features a precision-machined narrow-wide tooth profile for reliable chain retention on 8–12-speed 1x and singlespeed drivetrains. Made in Petaluma, California.

Features

• Designed for 8–12-speed 1x drivetrains
• Compatible with singlespeed drivetrains
• Tall-Short-Ring (TSR) narrow-wide tooth profile for improved chain retention
• Reduces the risk of dropped chains on rough terrain
• Precision CNC-machined in Petaluma, California
• Manufactured from 7075-T6 aluminum
• 48T–52T chainrings machined from 6061-T6 aluminum
• Lightweight, durable, and easy to service
• Made in the USA

• Chainlines:

• Specs
  • Available in black anodized and raw (unpolished) silver
  • 28 teeth to 52 teeth in 2 tooth increments
  • Boost and non-Boost versions
    • Standard/non-boost rings have a 3mm offset (inward)
    • Boost rings are flat (so 3mm outward of our standard/non-boost rings)
    • Standard/non-Boost rings can be flipped so the offset shifts outward to give you 3mm more outward offset than our Boost rings
      • This set up is is used on M30 cranks for a 55mm chainline needed for SRAM Transmission, Rohloff hubs, and Super Boost 157mm spaced hubs

  Compatibility

  • MR30 series TSR chainrings fit White Industries MR30 series spindle cranks only
  • Compatible with SRAM 10/11/12 speed and 12 speed flat-top chains
  • Compatible with SRAM 12 speed Eagle Transmission flat-top chains
  • Compatible with Shimano 9/10/11/12 speed chains (and now works with the Shimano’s 12 speed Quick Link)
  • Compatible with single speed 3/32 chains, but 8 speed 3/32″ chains are quieter
    • We like the SRAM PC 870, KMC X8, and KMC Z8.1/8.3
  • Not compatible with “half” links
  • Not compatible with 1/8″ chains
