Description

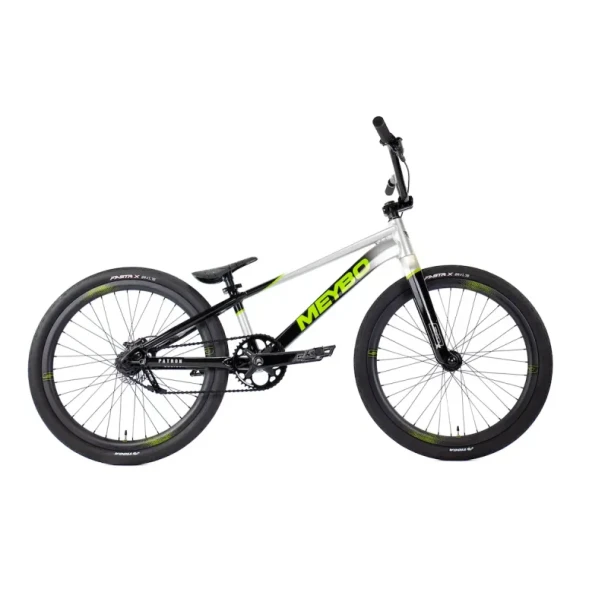

Meybo Patron Pro 22" BMX Race Bike
Straight out of the box and ready for the UCI World Cup, the Patron is the most high-end race ready machine that Meybo has ever offered. This machine was custom built from the frame, using their proven Holeshot model and paired with the most ridden fork at the Olympic Games, the BOX X5. If you're ready to win some races, and want to be able to pop open an OEM complete bike without having to change a single part, look no further than the Meybo Patron!
Features Pro 21,5" Patron Bike 2022:
| Fork: | BOX One X5 carbon Tapered Fork 20mm through axle |
| Headset: | FSA Sealed Full Integrated Tapered Headset |
| Handlebar: | SD cr-mo 7,5" pro Handlebar |
| Stem: | SD CNC Stem 11/8” 50mm |
| Grips: | SD 130 mm lock on grips |
| Brake Lever: | SD Bengal Hydraulic Lever |
| Brake: | SD Bengal Hydraulic Caliper |
| Front Hub: | SD Ace Pro Hub 36H 20mm through axle |
| Rear Hub: | SD Ace Pro Cassette Disc Hub 36H 6 Pawls 180 clicks 15mm Trough Axle |
| Spokes: | Spokes Black |
| Nipples: | Nipples Alloy Black |
| Front Rim: | SD M58 20x 1.75 Carbon Rim 25mm |
| Rear Rim: | SD M58 20x 1.75 Carbon Rim 25mm |
| Front Tire: | Tioga Fastr-X 20x 1.60 Wired |
| Rear Tire: | Tioga Fastr-X 20x 1.60 Wired |
| Seat: | Box Two pro seat 27,2 black |
| Seat Clamp: | SD qr clamb 31,8 black |
| Crankset: | SD Pro Hollow crankset 4hole, outboard bearings 170mm |
| Bracket: | SD hollow 24mm Euro, outboard bearings |
| Pedals: | Wellgo LU-313 platform |
| Front Sprocket: | SD CNC 6061 Chainring V2 4 Hole 43T Black |
| Cog: | Cog 16T |
| Chainring Bolts: | Black Steel |
| Chain: | KMC K1 3/32 Silver/Black |
| Disc: | SD Wave Disc 120mm |
Sizing Pro 21,5 Patron Bike 2022:
| Top Tube Rider Area | 21,46" |
| Down Tube | 21,38" |
| Chaintstay | 14,84" |
| Head tube Angle | 74,0 o |
| Seat Post Angle | 71,0 o |
| Head Tube Size Full Integrated | Tapered 1 1/8" - 1.5" |
| Seat Post Size | 27,2 mm |
| Dropout | 15 mm |
| Bracket | BB30 |
| Disc Brake ONLY | Postmount |
For more information visit Meybo
