Description

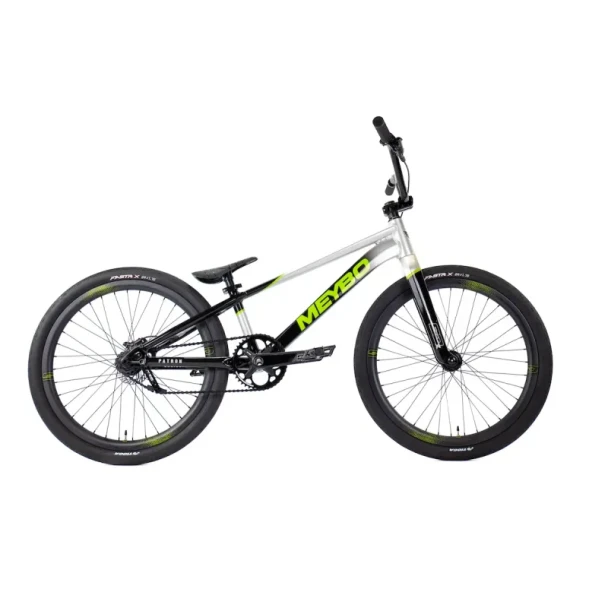

Meybo Patron Cruiser BMX Race Bike
Straight out of the box and ready for the UCI World Cup, the Patron is the most high-end race ready machine that Meybo has ever offered. This machine was custom built from the frame, using their proven Holeshot model and paired with the most ridden fork at the Olympic Games, the BOX X5. If you're ready to win some races, and want to be able to pop open an OEM complete bike without having to change a single part, look no further than the Meybo Patron!
Features Cruiser Patron Bike 2022:
| Fork: | BOX One X5 carbon Tapered Fork 20mm through axle |
| Headset: | FSA Sealed Full Integrated Tapered Headset |
| Handlebar: | SD cr-mo 5,75" pro Handlebar |
| Stem: | SD CNC Stem 11/8” 50mm |
| Grips: | SD 130 mm lock on grips |
| Brake Lever: | SD Bengal Hydraulic Lever |
| Brake: | SD Bengal Hydraulic Caliper |
| Front Hub: | SD Ace Pro Hub 36H 20mm through axle |
| Rear Hub: | SD Ace Pro Cassette Disc Hub 36H 6 Pawls 180 clicks 15mm Trough Axle |
| Spokes: | Spokes Black |
| Nipples: | Nipples Alloy Black |
| Front Rim: | SD M58 24x 1.75 Carbon Rim 30mm |
| Rear Rim: | SD M58 24x 1.75 Carbon Rim 30mm |
| Front Tire: | Tioga Fastr-X 24x 1.75 Wired |
| Rear Tire: | Tioga Fastr-X 24x 1.75 Wired |
| Seat: | Box Two pro seat 27,2 black |
| Seat Clamp: | SD qr clamb 31,8 black |
| Crankset: | SD Pro Hollow crankset 4hole, outboard bearings 175mm |
| Bracket: | SD hollow 24mm Euro, outboard bearings |
| Pedals: | Wellgo LU-313 platform |
| Front Sprocket: | SD CNC 6061 Chainring V2 4 Hole 41T Black |
| Cog: | Cog 18T |
| Chainring Bolts: | Black Steel |
| Chain: | KMC K1 3/32 Silver/Black |
| Disc: | SD Wave Disc 120mm |
Sizing Cruiser Patron Bike 2022:
| Top Tube Rider Area | 22,24" |
| Down Tube | 22,72" |
| Chaintstay | 15,35" |
| Head tube Angle | 74,0 o |
| Seat Post Angle | 71,0 o |
| Head Tube Size Full Integrated | Tapered 1 1/8" - 1.5" |
| Seat Post Size | 27,2 mm |
| Dropout | 15 mm |
| Bracket | BB30 |
| Disc Brake ONLY | Postmount |
1 Review
-
World class complete
PROS: The bike itself is super stiff for great power transfer this makes it blindingly fast. The carbon wheelset and forks are really strong I'm a big boy and landing jumps felt solid. Bar width is prime for giving great leverage in cornering. The hub engagement is excellent and positioning on gate starts is very consistent. The tires have fantastic grip in the corners and are equally capable on BMX or pump tracks. Deltas: The parts that transfer from the 20in bikes are under sized for the cruiser. For bigger/stronger riders (1500 or more watts on a sprint) the 120mm brake rotor struggles. Also, the pedal platforms are tiny and could use longer pintles to keep heels from hitting the seat stays.
