Meybo

Meybo Patron Bike Expert

(No reviews yet) Write a Review
SKU:
bk-meybo-patron-ex
On Sale
Now: $2,050.00
Was: $2,100.00

Description

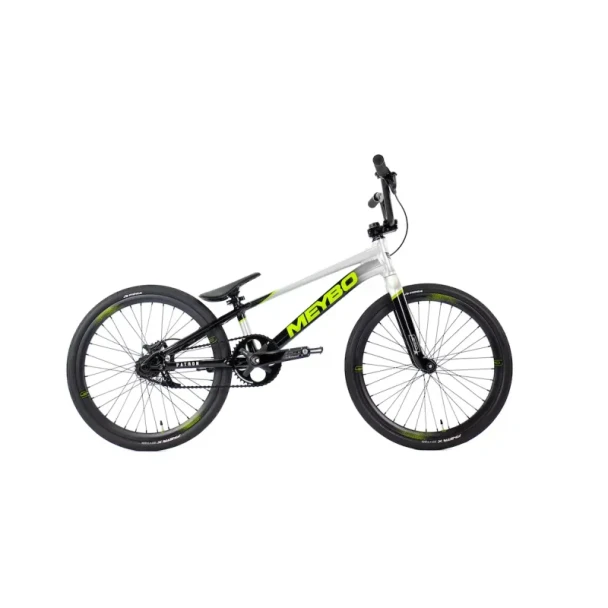

Meybo Patron Bike Expert

This Meybo Patron Bike is Expert Size

Straight out of the box and ready for the UCI World Cup, the Patron is the most high-end race ready machine that Meybo has ever offered. This machine was custom built from the frame, using their proven Holeshot model and paired with the most ridden fork at the Olympic Games, the BOX X5. If you're ready to win some races, and want to be able to pop open an OEM complete bike without having to change a single part, look no further than the Meybo Patron!


Features Expert Patron Bike 2022:

Fork: BOX One XL carbon fork 11/8" 10mm
Headset: FSA Sealed Full Integrated 11/8”
Handlebar: SD Alloy Expert Handlebar
Stem: SD CNC Stem 11/8” 50mm
Grips: SD 130 mm lock on grips
Brake Lever: SD Bengal Hydraulic Lever
Brake: SD Bengal Hydraulic Caliper
Front Hub: SD Ace Expert Hub 36H 8mm bolts
Rear Hub: SD Ace Cassette Disc Hub 36H 6 Pawls 180 clicks 8mm bolts
Spokes: Spokes Black
Nipples: Nipples Alloy Black
Front Rim: SD M83 20x 1 3/8 Carbon Rim 25mm
Rear Rim: SD M83 20x 1 3/8 Carbon Rim 25mm
Front Tire: Tioga Fastr-X 20x 1 3/8 Foldable
Rear Tire: Tioga Fastr-X 20x 1 3/8 Foldable
Seat: Box Two mini seat 25,4 black
Seat Clamp: SD qr clamb 28,6 black
Crankset: SD expert 4-lite 4hole, outboard bearings 160mm
Bracket: SD hollow 24mm Euro, outboard bearings
Pedals: Wellgo B-219 Sealed Bearing CNC platform
Front Sprocket: SD CNC 6061 Chainring V2 4 Hole 39T Black
Cog: Cog 16T
Chainring Bolts: Black Steel
Chain: KMC K1 3/32 Silver/Black
Disc: SD Wave Disc 120mm





Sizing Expert Patron Bike 2022:

Top Tube Rider Area 19,69"
Down Tube 19,92"
Chaintstay 13,58"
Head tube Angle 73,5 o
Seat Post Angle 71,0 o
Head Tube Size Full Integrated 1 1/8"
Seat Post Size 25,4 mm
Dropout 10 mm
Bracket EU
Disc Brake ONLY Postmount





For more information visit Meybo
