Description
Chase Race Pro Bike for BMX Racing

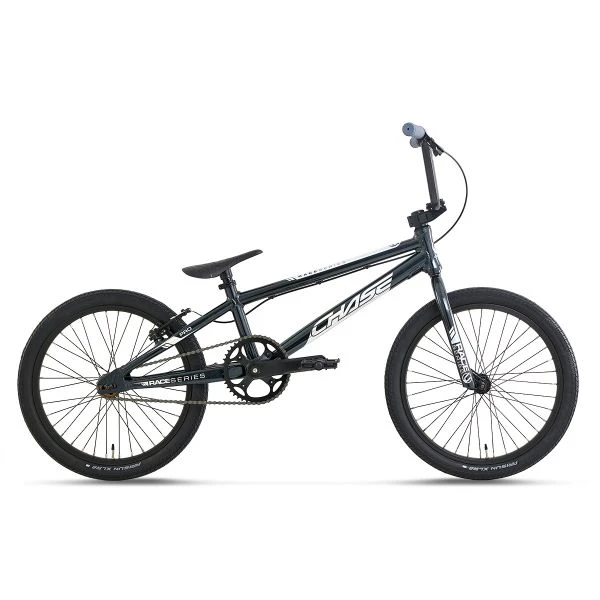

This is the Chase Race Pro Bike. Its 75% Pre-assembled and New in Box.
The Chase Race series Pro is the perfect entry-level 20″ BMX race bike for growing BMX racers. Made with an aluminum frame and integrated head tube, using the winning race proven geometry from our championship winning brand, Chase BMX, This BMX is a truly certified BMX racing bike. With race inspired graphics, 100% chromoly bars and forks, sealed hubs, double walled rims, and raced tuned parts from great companies like KMC and ARISUN, giving you the best value for your money in a entry-level race bike, from a company that actually races.
- FRAME: Pro 20.5" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
- FORK: Full Cr-mo, 1-1/8" Steer Tube
- STEM: Top Load, 1-1/8" Steer Tube, Length 53mm, 6061-T6 Alloy
- HANDLEBAR: CHASE Chromo 7.5″
- HEADSET: Integrated IS 42/42 1-1/8", Sealed Bearing
- CHAINRING: 43T 5 Bolts BCD 110mm, Steel
- CRANKSET: 3 Pieces Crank 170mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
- HUBS: 36H, Double Contact Seals Bearing, 3/8" Axle/Nuts, 16T cog
- RIMS: Double Wall Alloy 36H 1.75" Presta Valve Front and Rear
- TIRES: Arisun XLR8 1.75" Wire Bead Front and Rear
- BRAKES: V-Brake 103mm, Pro 2 Fingers lever
- SEAT: Expert/Pro Combo Alloy Post/Nylon Seat
RECOMMENDED SIZE: 4′ 11.8″ – 5′ 5.4″ / 1M52 – 1M66
WEIGHT: 9.5 Kg / 20.94 lb Without Pedal
Product Details
Data sheet
- FRAME
- Pro 20.5" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals
- FORK
- Full Cr-mo, 1-1/8" Steer Tube
- HANDLEBAR
- Cr-mo 7.5" Rise, Diameter 22.2mm, 27" Wide, 11° Back Sweep & 3.5° Up Sweep
- GRIPS
- 130mm Soft Single Ply Without Flange
- STEM
- Top Load, 1-1/8" Steer Tube, Diameter 22.2mm, Length 50mm, 6061 T6 Alloy
- HEADSET
- Integrated IS 42/42 1-1/8", Sealed Bearing
- CRANKS
- 3 Pieces Crank 170mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts
- BOTTOM BRACKET
- Euro Square 118mm Sealed Bearing
- CHAINRING
- 43 Tooth 4 Bolt 104mm 1/2"x3/32" 3mm Steel Ring
- CHAIN
- KMC Z6 1/2"x3/32"
- PEDALS
- Platform Nylon 9/16"
- RATIO GEAR
- 36x16
- SADDLE
- Mini Combo Alloy Post/Nylon Seat
- SEAT POST
- Mini Combo 25.4mm
- SEAT POST CLAMP
- 28.6mm Alloy 1 Bolt
- FRONT RIM
- Double Wall Alloy 36H 1.75" Presta Valve
- REAR RIM
- Double Wall Alloy 36H 1.75" Presta Valve
- FRONT HUB
- 36H, Double Contact Seals Bearing, 3/8" Axle/Nuts
- REAR HUB
- 36H, Double Contact Seals Bearing, 3/8" Axle/Nuts
- COG
- Freewheel 16 Tooth 1/2"x3/32"
- SPOKES
- 14 Gauge
- NIPPLES
- Brass Nipples
- FRONT TIRE
- Arisun XLR8 1.75" Wire Bead
- REAR TIRE
- Arisun XLR8 1.75" Wire Bead
- TUBES
- 20''*1.5"-1.75" Presta Valve
- BRAKE LEVER
- Pro 2 Fingers Lever
- REAR BRAKE
- V-Brake 103mm
- WEIGHT
- 9.5 Kg / 20.94 lb Without Pedal
- FRAME SIZE
- Pro
- RIDER SIZE
- 4'11.8" - 5'5.4"
> See our Complete bike Warranties conditions
All bikes must be originally assembled by an authorized dealer from original date of purchase to comply with Warranty program.
Complete Bikes Frame have a 1 Year MFG Warranty for defects. Parts have a 6 month MFG Warranty for defects. Stripped bolts, loose bolts causing improper tolerances, and items damaged due to improper riding and crashing are not covered and void any warranty.
