Chase Element Pro Plus Cruiser BMX Bikes
- SKU:
- bikechaseprocrup-BL
Description

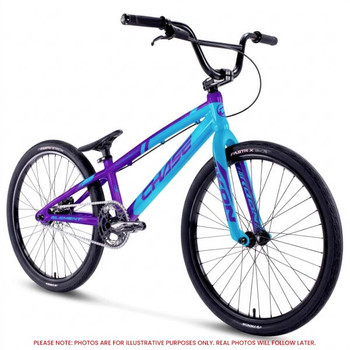

Chase Element Pro Plus Cruiser BMX Bikes
The Chase Element Pro Plus Cruiser BMX Bikes frame uses the same geometry as our Championship winning Chase ACT Carbon Fiber Frame and our Chase RSP race frames. Our bikes can help you win, if you have what it takes, by giving you an unfair advancement with the technology the Element offers. The 2023 Element frame features Hydroformed & butted tubing, an integrated chain tensioner/disc brake mounting system, and a Press Fit BB86 Bottom Bracket. This is one serious race machine.
The 2023 Element offers incredible features such as Hydroformed Alloy Disc Specific RaceFrame, ANSWER Dagger carbon fiber fork, TIOGA FastR X tires, 31.8mm handlebar & stem, Hydraulic Disc Brakes, Chase Triple Precise clutch cassette hub, SUN RINGLÉ rims, ELEVN Aero Pivotal seat & post, EXCESS LSP crank, BB-86 Press Fit Bottom Bracket, INSIGHT chainring & grips. With all the parts together with this Hi-End frame, we are able to make the ultimate Pro level & best complete race bike out of the box available today for BMX racing!
SPECIFICATIONS:
|
FRAME
|
CHASE Element Pro+ Cruiser 22″ Top Tube, 7005 T6 Alloy, Integrated 1-1/8″ Head Tube , Enclosed rear dropouts and Chain tensioner system |
|
FORK
|
ANSWER Dagger Carbon Pro Cruiser, Alloy Drop Out 3/8″ Axle, 1-1/8″ Alloy Steer Tube, Alloy Top Cap |
|
HEADSET
|
CHASE Integrated Sealed Bearing |
|
HANDLEBAR
|
CHASE Element 31.8mm, 5.75″ Rise, 28.5″ Wide, 10° Back Sweep, 2° Up Sweep |
|
GRIPS
|
INSIGHT C.O.G.S 145mm, Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
CHASE Element 31.8mm, 50mm, 6061 T6 Alloy CNC Laser Etched Logo |
|
BB
|
Press Fit 86/92mm Cartridge Bearings |
|
CHAINRING
|
INSIGHT 41 Tooth 4 Bolts 104mm 1/2″x3/32″ 5mm Alloy Ring |
|
CRANK
|
EXCESS LSP 2 Piece Crank 180mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts |
|
PEDAL
|
Nylon Platform Pedal 9/16″ |
|
CHAIN
|
KMC Z1 narrow 1/2″x3/32″ |
|
COG
|
18 Tooth |
|
FRONT HUB
|
CHASE Element, 3/8″ Axle, 36H, Sealed Bearing |
|
REAR HUB
|
CHASE Element ISO, 3/8″ Axle, 36H, Sealed Bearing, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
14 Gauge 236mm Front / 231mm Rear |
|
NIPPLES
|
Brass 14Gx5/8″ |
|
RIMS
|
SUN RINGLÉ Envy 36H 24×1.75″ No Brake Surface Schrader Valve |
|
FRONT TIRE
|
TIOGA PowerBlock 24×1.75″ |
|
REAR TIRE
|
TIOGA PowerBlock 24×1.60″ |
|
TUBES
|
24×1.50/1.75″ Schrader valve |
|
BRAKES
|
Hydraulic lever and caliper, 120mm disc rotor, Shimano B01S compatible Resin Pads, Lock Disc Adaptor |
|
SADDLE
|
ELEVN PC Pivotal |
|
SEAT POST
|
CHASE Aero Pivotal 27.2x260mm Alloy |
|
SEAT CLAMP
|
CHASE Aero 27.2mm QR Alloy |
For more information visit: chasebicycles.com
