SUNDAY BLUEPRINT BIKE 20"

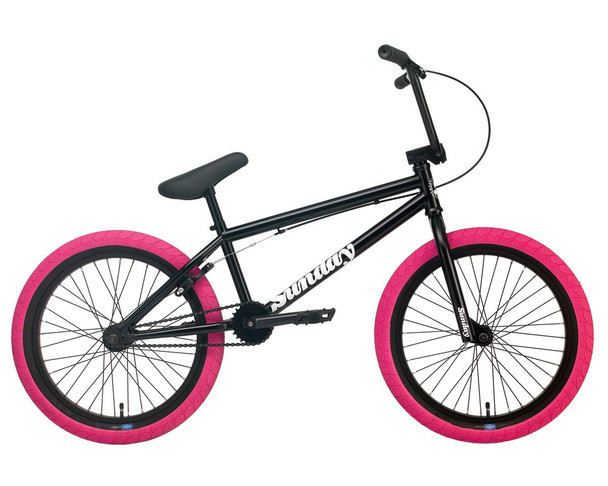

2022 Sunday Blueprint 20" Bike

2022 Sunday Blueprint 20" Bike

The 2022 Sunday Blueprint 20" BMX Bike is designed as an entry level bike to provide a durable ride to learn how to shred. Components such as the Odyssey Springfield brakes, FSA integrated headset, and 3-piece chromoly cranks create a bike that is reliable meaning more riding and less downtime. The Sunday Blueprint is built for beginners to promote growth and learning.

Bike Specifications:
Frame: Sunday Blueprint, Integrated Headtube
Fork: Sunday Blueprint, 2-Piece Steerer Tube, Welded Pre-Load
Bars: Sunday, 2-Piece (28.5" Width) (9" Rise) (12° Backsweep) (4° Upsweep)
Stem: Sunday Freeze Front Load (48mm)
Headset: FSA Integrated (1-1/8")
Preload Cap: FSA, Aluminum
Grips: Sunday Cornerstone
Cranks: 3-Piece, Chromoly (160mm Length)
Bottom Bracket: Loose Ball American (19mm)
Pedals: Wellgo Platform, Plastic
Chain: KMC S1
Sprocket: Sunday S-Logo, Steel (25 Tooth)
Front Hub: Sunday Low-Flange Loose Ball (3/8" Axle)
Rear Hub: Sunday Cassette (14mm Axle)
Driver: 9 Tooth
Spokes: Steel, Black (14 Gauge)
Front Rim: P-7X, Aluminum (20") (36 Hole)
Rear Rim: P-7X, Aluminum (20") (36 Hole)
Front Tire: Sunday Current (20 x 2.4") (Pink)
Rear Tire: Sunday Current (20 x 2.4") (Pink)
Seat: Sunday Badge (Combo)
Seat Post: Combo (25.4mm)
Seat Clamp: Integrated
Lever: Aluminum (U-Brake Compatible)
Brake Cable: Odyssey Quik Slic
Brakes: Odyssey Springfield U-Brake
Brake Mounts: Welded
Gyro Tabs: Drilled (Not Included)
Extras: N/A
Color: Gloss Black
Weight: 26 lbs

Frame Geometry:
Toptube: 20"
Headtube Angle: 75°
Seattube Angle: 71°
Chainstays: 13.2" - 13.5"
BB Height: 11.5"
Stand Over Height: 8.75"
Sizing Guideline: 4' 10" - 5' 6" Rider Height
