Description

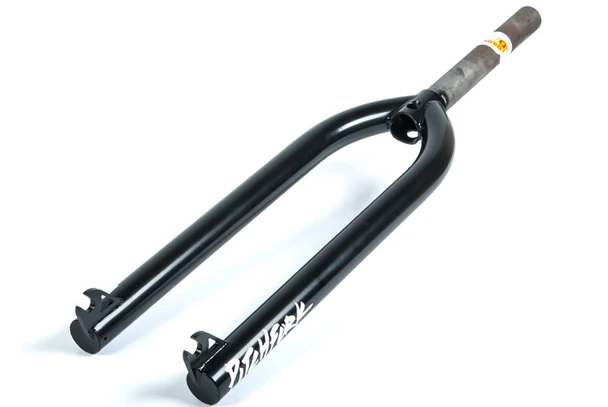

S&M Pitchfork Classic
S&M Pitchfork BMX Fork is seveal sizes. American Made.
4Q Baked butted legs
3/8 dropouts
Clearance for 2.4 tires
Axle to crown - 435mm. 65mm. corrected
Rake - 33 mm.
Steerer tube length - 203 mm.
2.49 lbs.
Lifetime Warranty
Made in USA
1 1/8 steerer tube
| LEGS | Double Butted,4130 CrMo |
| DROPOUTS | Laser Cut 3/8" Slot |
| STEERER TUBE | 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert REQUIRES PRESS ON CROWN RACE |
| STEERER TUBE LENGTH | 160mm, 26"-203mm-No Compression Bolt |
| COMPRESSION | M10 X 1.25 Thread - 6mm Allen Slot |
| AXLE TO CROWN HEIGHT | 18"-290mm, 20"-315.5mm, 22"-336.5mm, 24"-366mm, 26"-425mm |
| OFFSET | 33mm |
| WEIGHT | 1.99 lb (.90 kg) |
| HEAT TREAT | 4Q Baked Post-Weld |
