Description
ORDER FAIRDALE X TOY MACHINE LOOKFAR BIKE - GLOSS BROWN
Fairdale Bikes has teamed up with legendary skate brand Toy Machine to offer not 1, but 2 limited edition bikes. The Fairdale X Toy Machine Macaroni and Lookfar are rad on their own, but perfect for parent/child combos.
Toy Machine Lookfar comes stock with Fairdale Adjust-A-Rack and Skaterack.
Specifications
- Frame: 1020 Steel, with Rack and Fender mounts
- Fork: 1020 Steel, 1 1/8”
- Handlebar: Fairdale Archer v3, Aluminum
- Stem: 70mm, Forged Aluminum
- Headset: FSA, Sealed Integrated, 45º/45º
- Brake Lever: Aluminum, Short Pull
- Brake: Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
- Grips: Fairdale Swan
- Saddle: Fairdale x Toy Machine
- Seat Post: Micro adjust, 27.2mm
- Seat Clamp: Fairdale, 30mm
- Cranks: FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)
- Chainwheel: Toy Machine Laser-Etched Guard, 42t
- BB Parts: FSA
- Pedals: Odyssey Twisted PC
- Rims: 700c, 36-Hole, Schrader Valve, Aluminum
- Front Hub: 36H, 3/8” Axle, Aluminum Shell, Looseball
- Rear Hub: 36H, 3/8” Axle, 7-Speed, Aluminum Shell, Looseball
- Tires: Goodyear Transit Tour, 700c x 40mm
- Chain: KMC Z8.1, 8-Speed
- Driver: 8-Speed, 13-34t
- R. Shift Lever: SRAM X4 Trigger, 8-Speed
- R. Shift Lever Alternate: Microshift TS39-8R, 8-Speed
- R. Derailleur: SRAM X4, Mid-cage, 8-Speed
- R. Derailleur Alternate: Microshift RD-M26CS, 8-Speed
- Shift Cable: Fairdale
- Accessories: Fairdale Skaterack and Adjust-A-Rack
Geometry
| Size | XS (49cm) | S (52cm) | M (55cm) | L (58cm) |
| Top Tube (Effective) | 508mm | 525mm | 552mm | 578mm |
| Top Tube (Actual) | 495mm | 507mm | 531mm | 559mm |
| Seat Tube (BB Center To TT Top) | 385mm | 436mm | 490mm | 538mm |
| Seat Tube (BB Center To TT Center) |
317mm | 370mm | 448mm | 496mm |
| Seat Tube Angle | 74.5 ° | 74° | 73° | 73° |
| Head Tube Length | 100mm | 120mm | 140mm | 160mm |
| Head Tube Angle | 69.6 ° | 70° | 71° | 72.5° |
| Chain Stay Length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1021mm | 1030mm | 1038mm | 1050mm |
| Standover | 698mm | 733mm | 780mm | 815mm |
| Stack | 521mm | 541mm | 564mm | 589mm |
| Reach | 363mm | 370mm | 379mm | 398mm |
| Fork Length | 401mm | 401mm | 401mm | 401mm |
| Fork Offset | 50mm | 50mm | 50mm | 50mm |
| BB Drop | 68mm | 68mm | 68mm | 68mm |
| Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
| BB Type | English 68 | English 68 | English 68 | English 68 |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Approx. Max Tire Width | 42mm | 42mm | 42mm | 42mm |
| Wheel Size | 700c | 700c | 700c | 700c |
Related Products
On Sale
Fairdale Lookfar Bike
Fairdale
Now:
$629.95
Was:
$669.00
ORDER FAIRDALE LOOKFAR BIKE
The Fairdale Lookfar makes cruising and commuting easy. 75% Pre-assembled. New in Box.
One simple trigger shifter changes the gears up-or-down through all 7-speeds. The...
Fairdale Lookfar SRAM Bike
Fairdale
$669.99
Fairdale Lookfar SRAM Bike
The Lookfar will happily get you where you need to go. And, it'll make you want to ride even when you don't have to go anywhere. That's the thing about a good bike;...
Fairdale Lookfar Step-Thru Bike - Matte Coral Red
Fairdale
$629.00
FAIRDALE LOOKFAR STEP‑THRU BIKE - MATTE CORAL RED
We're happy to announce that a step-thru model has been added back to our line up this year. We've had numerous requests for a step-thru bike and...
Fairdale X Toy Machine 8.5" Skateboard Deck
Fairdale
$59.99
Fairdale X Toy Machine 8.5" Skateboard DeckOfficial Toy Machine x Fairdale skateboard deck with exclusive art by Ed Templeton.Limited Edition.Made by Toy Machine.8.5" width.
Fairdale Ridgemont Bike
Fairdale
$669.00
ORDER FAIRDALE RIDGEMONT BIKE
The Ridgemont is a bit of an oddball bike that we think is both practical and enjoyable. When the bike path ends, the Ridgemont keeps going with 2.0" wide 27.5" tires...

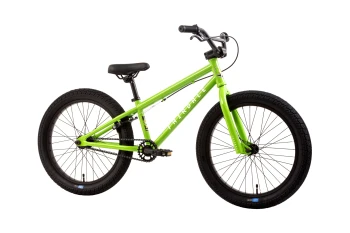

Fairdale Macaroni Bike
