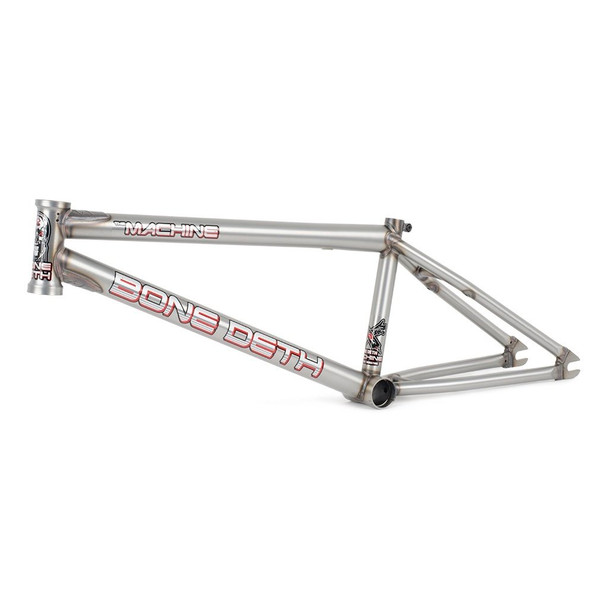

Bone Deth Machine Frame

Bone Deth Machine Frame

The Bone Deth Machine Frame, world Renowned Deadman rider, Colt Fake designed this frame. Built for all terrain and immense abuse to last you years on end. This thing rides and performs like the machine himself, the indestructible… Colt Fake

SPECIFICATIONS

• COLT FAKE signature frame
• 20.6″, 20.8″, 21″ or 21.25″ TT
• Chain Stay: 13.3″ / 338mm
• Oval Chain stays with curved tube bridge
• Head Tube: 115mm/ 75°
• Seat Tube: 71°
• BB 11.8 (43mm)
• Dropouts ? 6mm
• Chain Stay – 20mm / 1.4T
• Seat stays 19mm / 15mm- 1mm thick
• Seat stay bridge CNC plate
• Integrated Seat Clamp
• Removable brake hardware
• DT / TT gusset
• TT Diameter 31.8mm / 1″
• DT Diameter 35mm / 1 3/8″
• Pressed ends
