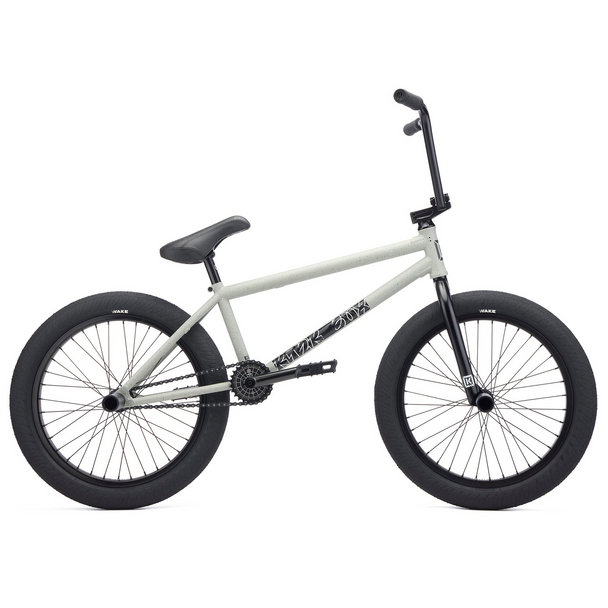

KINK SWITCH BIKE 2023
The Kink Switch Bike is designed for BMX Freestyle, Street and Dirt Jump type riding. Its 75% pre-assembled.
The Kink Switch is truly a standout bike in our lineup. Designed as a brakeless bike, the Switch also includes removable brake mounts and a full brake set for those wanting to ride with brakes. The 2023 Switch does not disappoint in its design or components either, and features 100% 4130 chromoly construction, and sealed bearings throughout the bike. The addition of two included plastic pegs means this bike is grind ready out of the box. The unique Gloss Gravity Grey colorway is paired with all black parts and Kink Chinaski aftermarket seat.
Complementing the Switch model are a ton of great components like the Kink Trident forks featuring a one-piece steerer tube, 9” Kink F900 4-piece bars, Kink Bold HRD stem and Kink Ridge 3-piece tubular chromoly cranks. Combining the removable brake design, two included plastic pegs, and the street style Kink Sever 2.4” tires, really solidifies this bike as a true street machine.
| Model Year | 2023 |
|---|---|
| Top Tube | 20.75 |
| Rear Triangle | 12.75" |
| Head Tube | 75.5 |
| Stand Over | 9" |
| BB Height | 11.6" |
| Frame | Switch |
| Material | Chromoly |
| Fork | Kink Trident Fork 100% 4130 Chromoly 1pc Steerer Tube Tapered Fork Legs |
| Fork Offset | 26mm |
| Compression Bolt Size | 24 |
| Handlebars | Kink F900 9" 100% 4130 Chromoly |
| Bar Style | 4 Piece |
| Bar Rise | 9" |
| Grips | Kink Form Grips |
| Grip Style | Flangeless |
| Grip Length | 150mm |
| Bar Ends | Kink Thrust |
| Bar End Size | 31 |
| Stem | Kink Bold HRD 50mm |
| Stem Style | Top Load |
| Stem Rise | 32mm |
| Stem Reach | 50mm |
| Headset | Mission Sealed Integrated (41.8 x 45) |
| Brake Lever | Mission Token |
| Lever Orientation | Right |
| Cable Type | Linear |
| Brakes | Mission Cease V2 |
| Frame Brake Style | Removable |
| Cranks | Kink Ridge 3pc Tubular Chromoly 165mm - 8 Spline |
| Crank Style | 3pc |
| Crank Length | 165mm |
| Drive Side Option | RHD |
| Spindle Size | 19mm |
| Spindle Splines | 8 |
| Bottom Bracket | Sealed Mid 19mm |
| Bottom Bracket Style | Mid |
| Pedals | Kink Hemlock Pedals |
| Pedal Size | 9/16" |
| Chain | Mission 510H |
| Chain Style | 510 |
| Sprocket | Mission Locator 25T 6061-T6 |
| Sprocket Size | 25t |
| Hubs | Mission Bond Sealed Bolt-In Hub / Mission Pace Sealed Freecoaster 14mm Hub |
| Driver | Sealed 9 Tooth |
| Spoke Holes | 36 |
| Spoke Style | J Bend |
| Rims | Mission Mylar / Mission Mylar |
| Rim Wall | Double Wall |
| Wheel Size | 20" |
| Seat | Kink Chinaski Stealth |
| Seat Style | Stealth |
| Seat Size | Fat |
| Seat Post | Mission Stealth |
| Post Diameter | 25.4mm |
| Tires | Kink Sever 2.4 |
| Bead Type | Wire |
| Tire Size | 20x2.4 |
| PSI Rating | 60 |
| Valve Type | Schrader |
| Pegs | 2 Mission Nylon Pegs |
